Launching MVP

2024-11-15 1502 words 8 minutes

Contents

Last week, AWS VPC resources were defined in a Network account and shared across the accounts in the Sandbox OU

It’s time to launch the MVP(minimum viable product). The developer has pushed the source code to a Github repo. As a DevOps engineer, your task is to build the system and publish the service for initial testing.

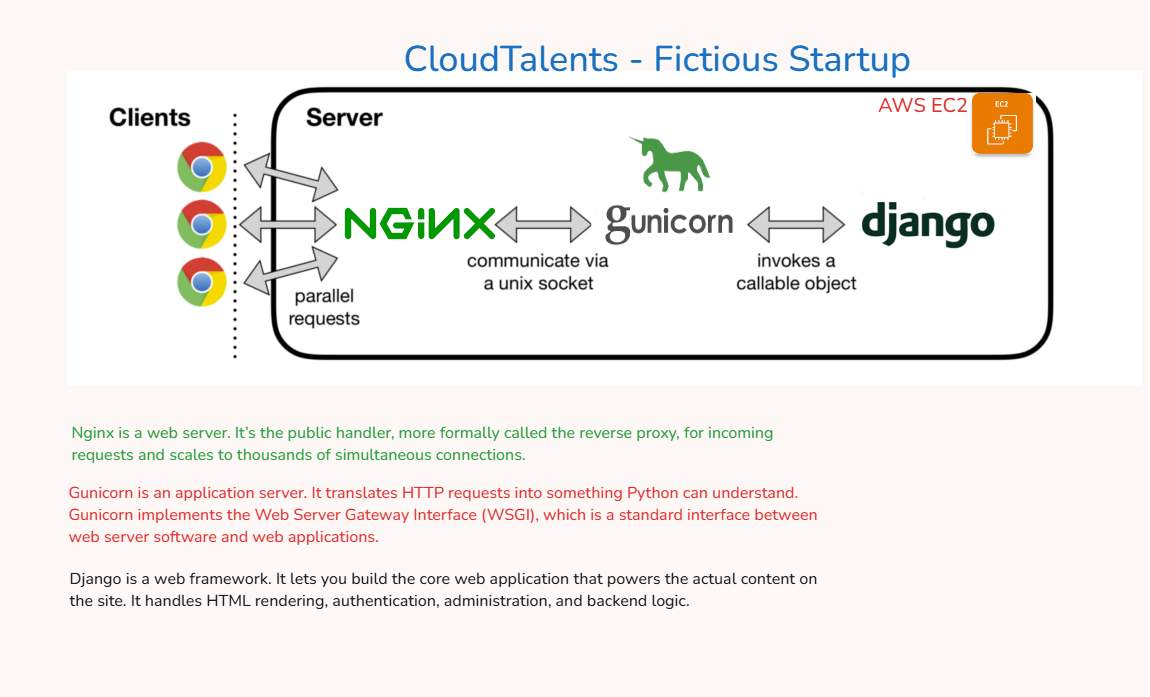

Application Overview

It is written in Python and uses the Django web framework.
NGINX serves as a reverse proxy.
Gunicorn implements the web server gateway interface(WSGI), translating HTTP requests into something Python can understand.
Postgres is the chosen database for storing the authenticated user data.

Note

All these components fit in an EC2 instance and serve the purpose.

There are a handful of tasks out there for DevOps Engineers;

Building a custom AMI using HashiCorp Packer and Bash scripting
Infrastructure provision by Terraform
Managing CI/CD pipeline through GitHub Actions

Implementation

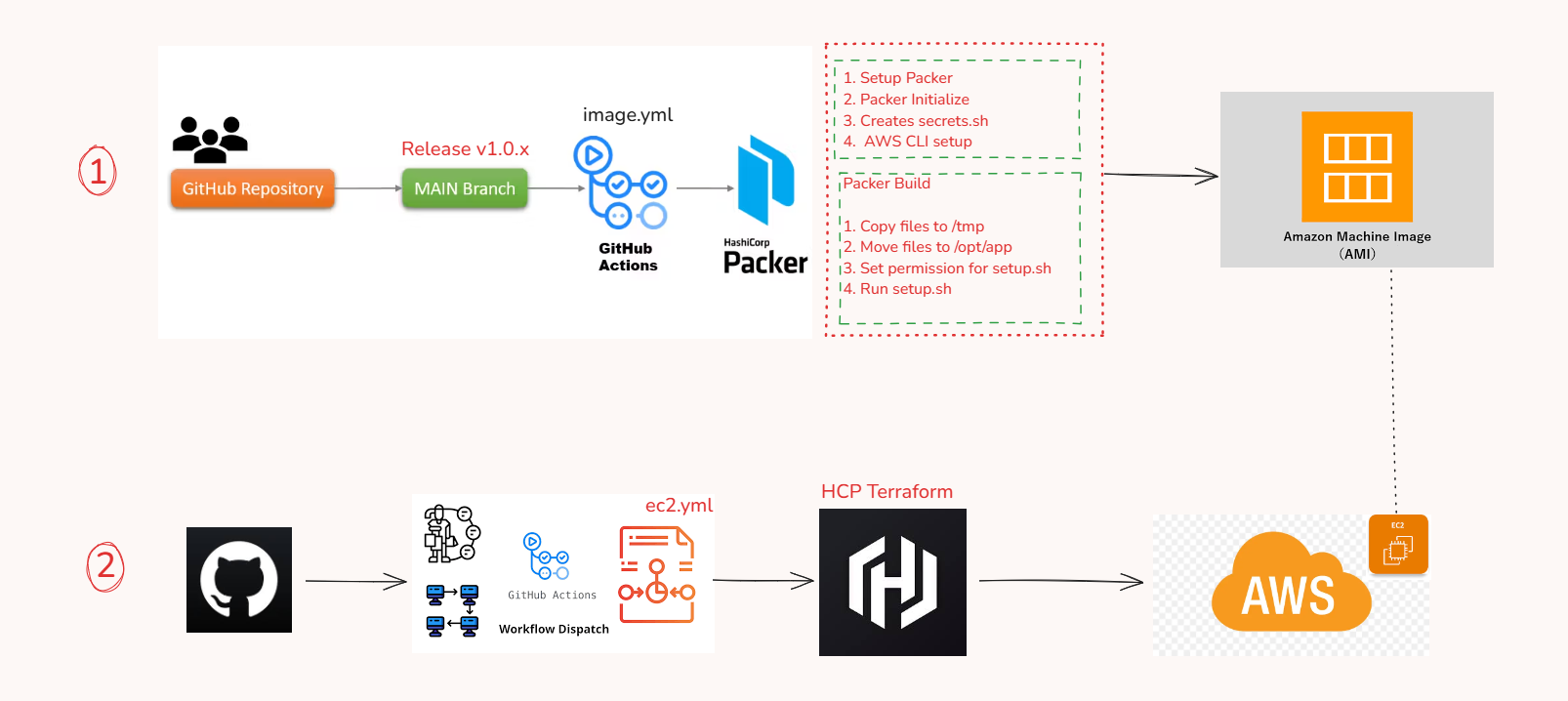

The diagram depicts two CI/CD workflows. One builds the AMI using Packer, and the other deploys an EC2 from the custom AMI. Why Packer? We aim to build immutable images and deploy them without additional configuration. Using Packer, a custom AMI is built from the parent image(Ubuntu) using a BASH script. The script installs the necessary packages and sets up a Python environment for our application to run. For every GitHub release, an AMI gets created corresponding to the release version.

The ec2.yml workflow is set to manual trigger with an input variable “version.” This ensures that the application release matches the AMI version.

Take a look at the packer template below. Two plugins are being used. The amazon is used to build AMI on AWS, and amazon-ami-management is our post-processor plugin, which keeps only the last 2 releases of your AMI.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
packer {
  required_plugins {
    amazon = {
      version = ">= 1.2.8"
      source  = "github.com/hashicorp/amazon"
    }
  }
  required_plugins {
    amazon-ami-management = {
      version = ">= 1.0.0"
      source  = "github.com/wata727/amazon-ami-management"
    }
  }
}

variable "subnet_id" {}
variable "vpc_id" {}
variable "version" {}

locals {
  ami_name          = "devopsify-engineering"
  source_ami_name   = "ubuntu/images/*ubuntu-jammy-22.04-amd64-server*"
  source_ami_owners = ["099720109477"]
  ssh_username      = "ubuntu"
}

source "amazon-ebs" "ubuntu" {
  ami_name      = "${local.ami_name}-${var.version}"
  instance_type = "t2.micro"
  region        = "eu-west-1"
  source_ami_filter {
    filters = {
      name                = local.source_ami_name
      root-device-type    = "ebs"
      virtualization-type = "hvm"
    }
    most_recent = true
    owners      = local.source_ami_owners
  }
  ssh_username                = local.ssh_username
  vpc_id                      = var.vpc_id
  subnet_id                   = var.subnet_id
  associate_public_ip_address = true
  tags = {
    Amazon_AMI_Management_Identifier = local.ami_name
  }
}

build {
  name = "custom_ami"
  sources = [
    "source.amazon-ebs.ubuntu"
  ]
  provisioner "file" {
    source      = "./"
    destination = "/tmp"
  }
  provisioner "shell" {
    inline = [
      "echo Moving files...",
      "sudo mkdir -p /opt/app",
      "sudo mv /tmp/* /opt/app",
      "sudo chmod +x /opt/app/setup.sh"
    ]
  }
  provisioner "shell" {
    script = "setup.sh"
  }
  post-processor "amazon-ami-management" {
    regions       = ["eu-west-1"]
    identifier    = local.ami_name
    keep_releases = 2
  }
}

The AMI details are provided in the source block, which is triggered by the build block underneath. The build block defines a couple of provisioner blocks to leverage file transfer and script execution. The packer build command requires a few arguments, such as vpc_id and subnet_id, which are defined as variables.

Let us move on to the image.yml workflow file. This workflow is triggered every time a new release is published. Within build_job step 6, secrets.sh gets created to store the DB credentials. Security-minded people out there, I know this is not a recommended practice. In the upcoming post, I will use AWS-managed services to store the secrets. Okay, back to the workflow. GitHub Actions uses OIDC integration with AWS. In the last step, the packer builds the image, and we use the value of github.ref_name as the version. This value replaces the AMI version in the packer template.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
name: private_ami

on:
    release:
        types: [published]

env:
   AWS_REGION: "eu-west-1"
   PACKER_VERSION: "1.11.2"

jobs:
    build_image:
        name: packer build
        runs-on: ubuntu-latest

        # Permissions to create the OIDC JWT
        permissions:
            id-token: write
            contents: read

        steps:
            # Step 1 - Checkout Repository
            - name: Repository Checkout
              uses: actions/checkout@v4

            # Step 2 - Install packer v1.11.2
            - name: Setup `packer`
              uses: hashicorp/setup-packer@main
              id: setup
              with:
                version: ${{ env.PACKER_VERSION }}

            # Step 3 - Packer init
            - name: Run `packer init`
              id: init
              run: "packer init ./image.pkr.hcl"

            # Step 4 - Decalre Environment variables
            - name: Script
              run: |
                sudo cat > secrets.sh <<EOF
                #!/bin/bash
                export SECRET_KEY='${{ secrets.SECRET_KEY }}'
                export DB_USER='${{ secrets.DB_USER }}'
                export DB_PASSWORD='${{ secrets.DB_PASSWORD }}'
                EOF

            # Step 5 - Setup AWS CLI
            - name: Configure AWS credentials
              uses: aws-actions/configure-aws-credentials@v4
              with:
                role-to-assume: ${{ secrets.IAM_ROLE_ARN }}
                aws-region: ${{ env.AWS_REGION }}

            # Step 6 - Packer build
            - name: Run `packer build`
              run: packer build -color=false -on-error=abort -var "vpc_id=${{ secrets.VPC_ID }}" -var "subnet_id=${{ secrets.SUBNET_ID }}" -var "version=${{ github.ref_name }}" ./image.pkr.hcl

Output

Info

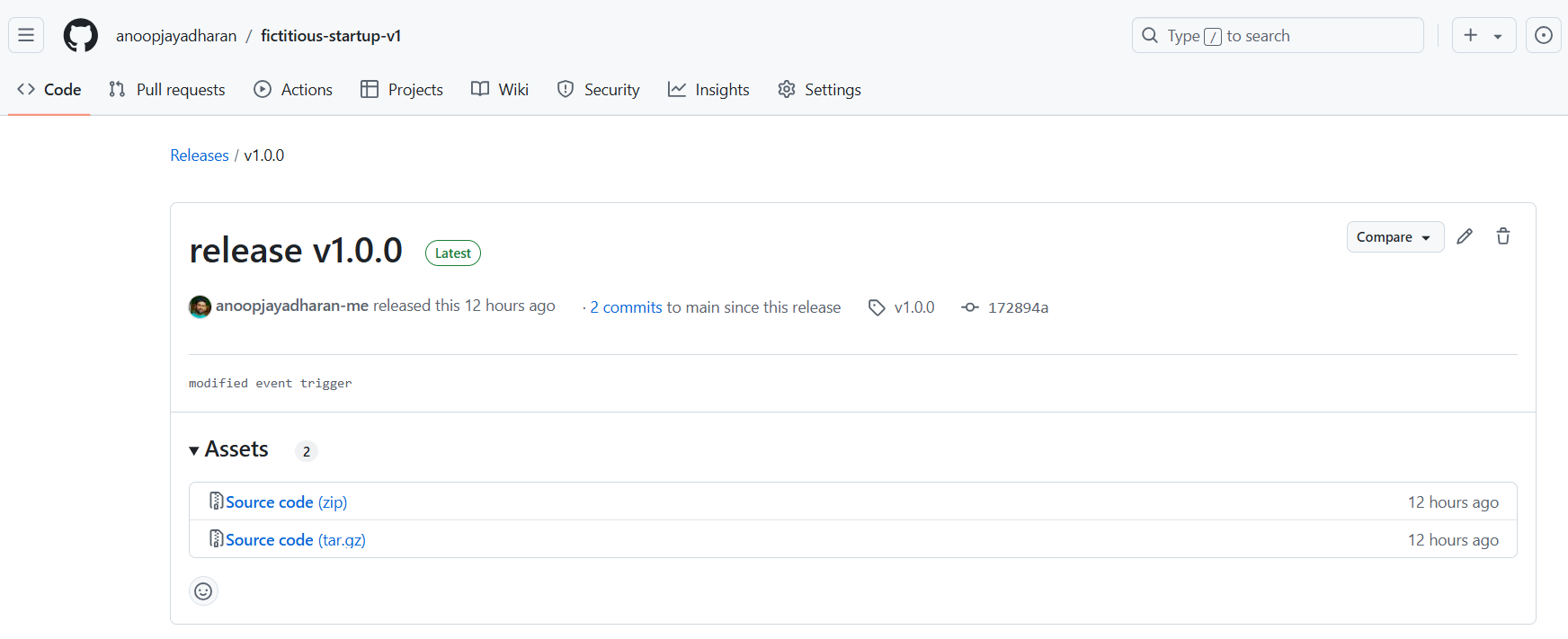

A new release has been published

Tip

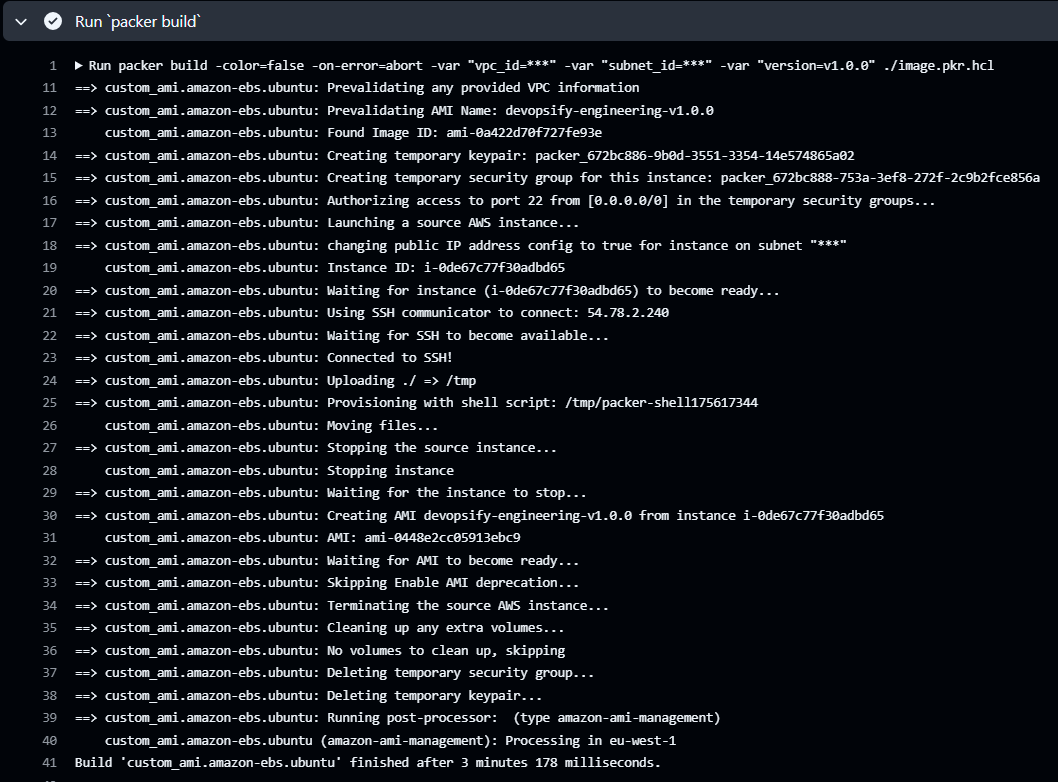

Packer run produces below output

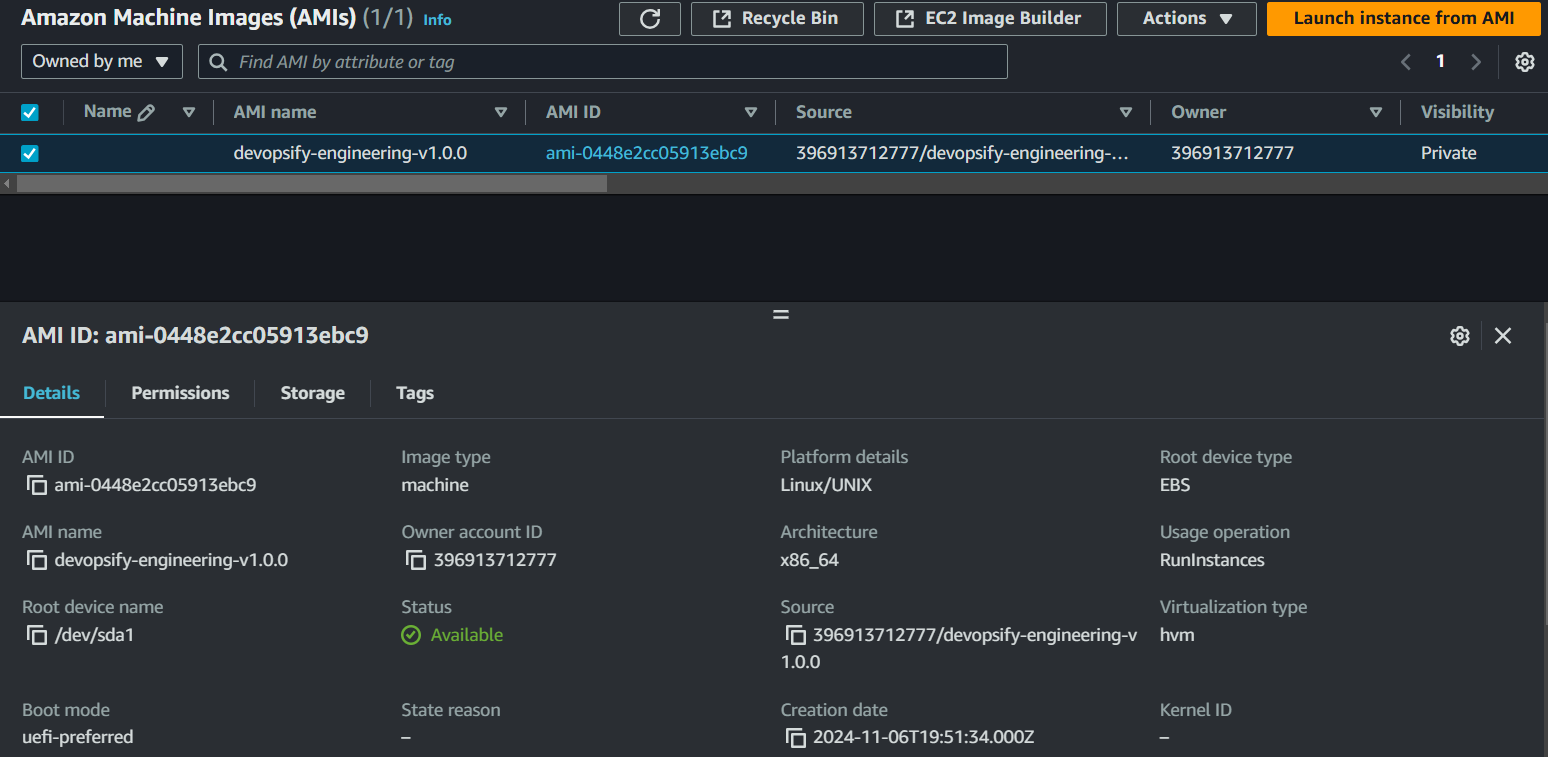

Amazon Machine Image

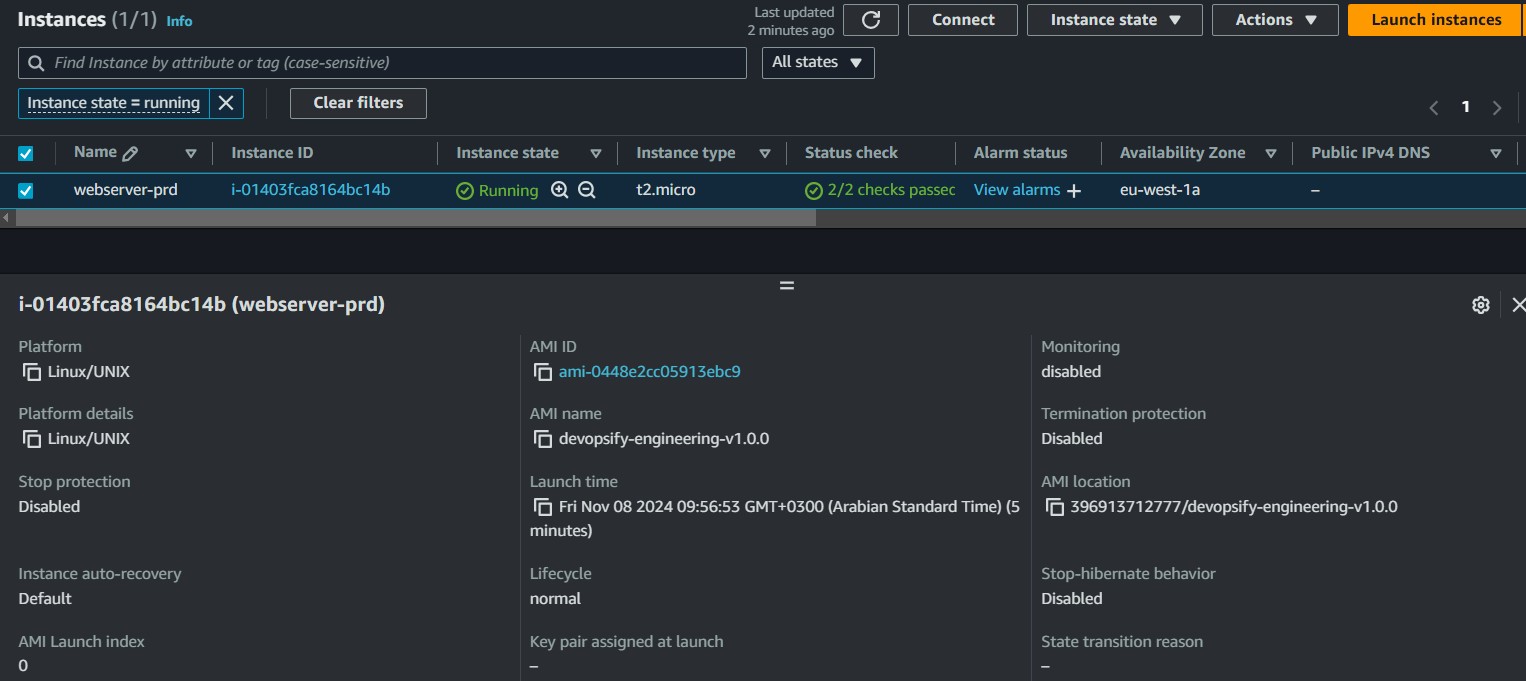

Next, we need to deploy an EC2 instance from this custom AMI. Let’s examine the ec2.yml workflow. The launch_ec2 job uses terraform to deploy the instance. In the terraform apply command, an input variable named “AMI version” is being supplied. This ensures that the application release matches the AMI version.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
name: launch_ec2

on:
    workflow_dispatch:      # manual trigger
        inputs:             # provide ami_version as an input
            ami_version:
                description: 'AMI version'
                required: true
jobs:
    launch_ec2:
        name: Launch EC2
        runs-on: ubuntu-latest
        defaults:
            run:
              working-directory: terraform
        steps:

            # Step 1 - Checkout Repository
            - name: Checkout Repository
              uses: actions/checkout@v4

            # Step 2 - Install terraform '1.9.8'
            - name: Terraform Workflow
              uses: hashicorp/setup-terraform@v3
              with:
                terraform_version: "1.9.8"
                cli_config_credentials_token: ${{ secrets.TF_API_TOKEN }}     # API_TOKEN for HCP Terrafom

            # Step 3 - Terraform init
            - name: Terraform Init
              id: init
              run: terraform init

            # Step 4 - Terraform plan
            - name: Terraform Plan
              id: plan
              run: terraform plan -var "custom_ami_version=${{ inputs.ami_version }}" -no-color
              continue-on-error: true

            # Step 5 - Terraform apply, set variable ami_version
            - name: Terraform Apply
              id: Apply
              run: terraform apply -var "custom_ami_version=${{ inputs.ami_version }}" -auto-approve

            # Step 6 - GiHub step summary
            - name: Step Summary
              run: |
                echo URL="http://$(terraform output ec2_public_ip | tr -d '""')" >> $GITHUB_STEP_SUMMARY

Note

The terraform code for ec2 looks easy on the eyes. The custom AMI needs to be imported first. The instance requires an ingress security rule to allow inbound HTTP traffic.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
# Imports private-ami
data "aws_ami" "custom_ami" {
  most_recent = true
  owners      = ["self"]

  filter {
    name   = "name"
    values = ["devopsify-engineering-${var.custom_ami_version}"]
  }

  filter {
    name   = "root-device-type"
    values = ["ebs"]
  }

  filter {
    name   = "virtualization-type"
    values = ["hvm"]
  }
}

# Retrieves vpc and subnet ids from network workspace
data "tfe_outputs" "network" {
  organization = "ajcloudlab"
  workspace    = "network"
}

# Creates an ec2 instance using the imported AMI
resource "aws_instance" "web_server" {
  ami                         = data.aws_ami.custom_ami.id
  instance_type               = "t2.micro"
  availability_zone           = var.az
  subnet_id                   = data.tfe_outputs.network.values.public_subnet[1]
  associate_public_ip_address = true
  vpc_security_group_ids      = [aws_security_group.allow_http.id]
  iam_instance_profile        = aws_iam_instance_profile.connectEC2_profile.name

  tags = merge(local.tags,
    {
      Name = var.ec2_name
  })
}

# Creates security group
resource "aws_security_group" "allow_http" {
  name        = "allow_http"
  description = "Allow HTTP inbound traffic and all outbound traffic"
  vpc_id      = data.tfe_outputs.network.values.vpc

  tags = merge(local.tags,
    {
      Name = var.sg_name
  })
}

# Creates an inbound rule to allow http
resource "aws_vpc_security_group_ingress_rule" "allow_tls_ipv4" {
  security_group_id = aws_security_group.allow_http.id
  cidr_ipv4         = "0.0.0.0/0"
  from_port         = 80
  ip_protocol       = "tcp"
  to_port           = 80
}

# Creates an outboud rule to allow all traffic
resource "aws_vpc_security_group_egress_rule" "allow_all_traffic_ipv4" {
  security_group_id = aws_security_group.allow_http.id
  cidr_ipv4         = "0.0.0.0/0"
  ip_protocol       = "-1" # semantically equivalent to all ports
}

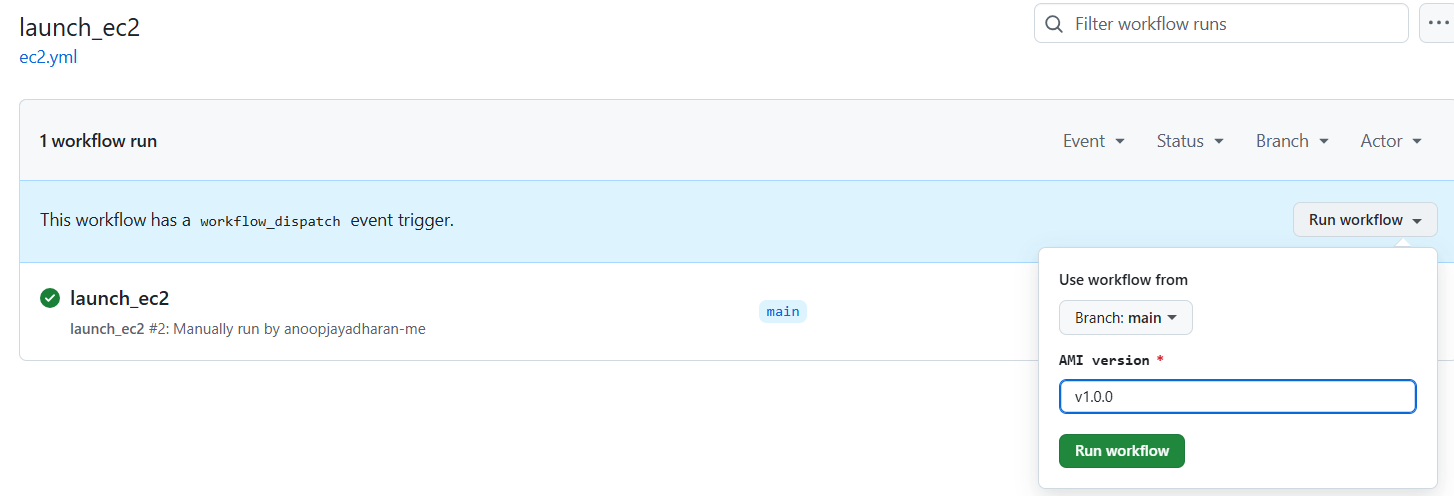

Workflow Trigger

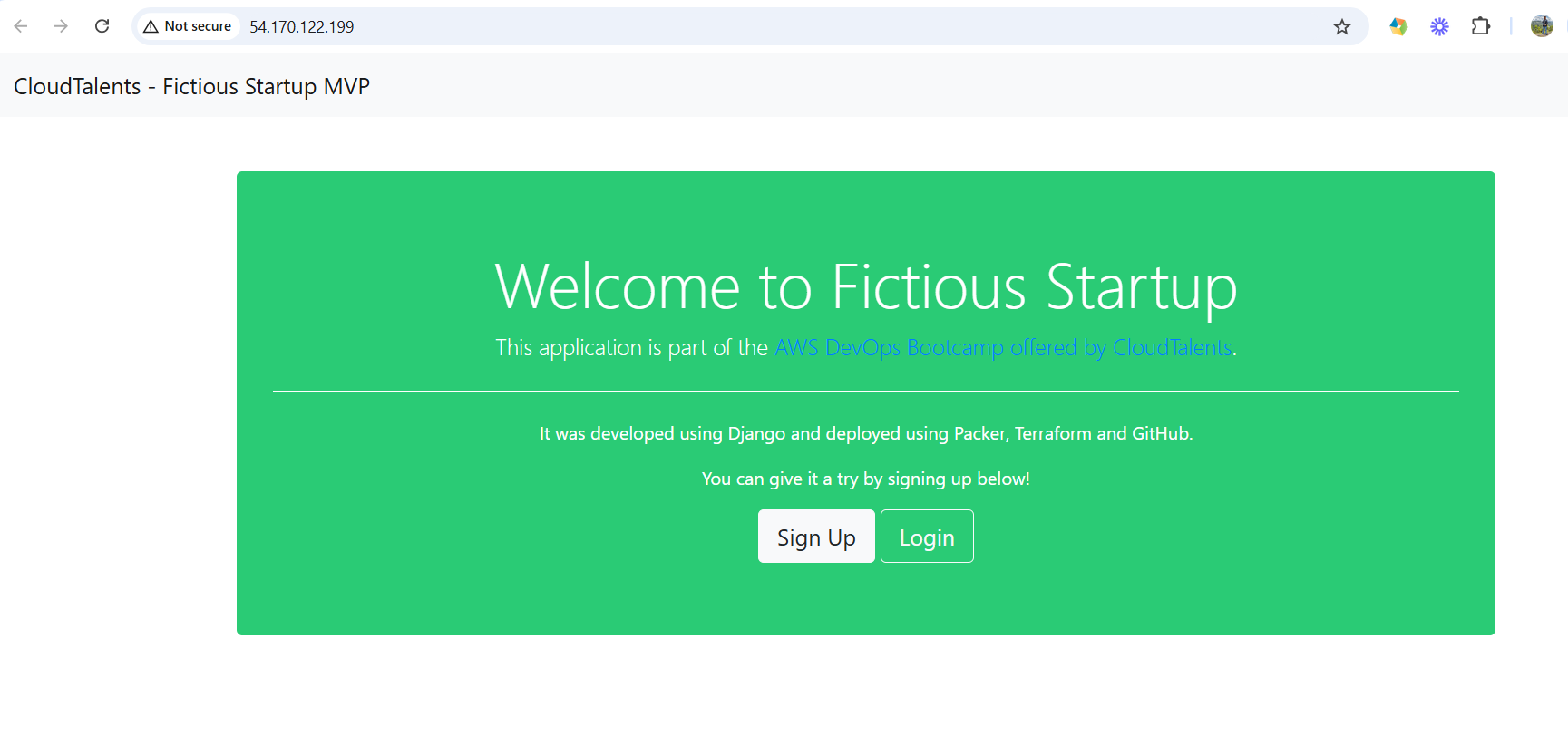

Browse Application

Go to http://ec2publicip

Hurray, the MVP is up and running
