Dockerizing Cloudtalents Startup App

2024-11-27 1204 words 6 minutes

Contents

Ever since the MVP was up and running, I could not stop building the Django application’s docker image knowing the containerization fundamentals.

Experimenting with various aspects of the docker container in the local machine was entertaining.

Reading my previous article will help you learn about the cloud talents application we will containerize.

All right, here you go; this is the high-level overview of the application.

It is written in Python and uses the Django web framework.
NGINX serves as a reverse proxy
Gunicorn implements the web server gateway interface(WSGI), translating HTTP requests into something Python can understand
Postgres is the chosen database for storing the authenticated user data.

We have chosen to run three containers: one for NGINX, one for the business logic (Django + Gunicorn), and the last for Postgres.

Source code repo

Info

The Source code is available at cloudtalents-startup-v1

However, the following changes were made to the settings.py file under the cloudtalents directory.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
import os

SECRET_KEY = os.environ.get("SECRET_KEY")

DATABASES = {
    'default': {
        "ENGINE": os.environ.get("SQL_ENGINE"),
        "NAME": os.environ.get("SQL_DATABASE"),
        "USER": os.environ.get("SQL_USER"),
        "PASSWORD": os.environ.get("SQL_PASSWORD"),
        "HOST": os.environ.get("SQL_HOST"),
        "PORT": os.environ.get("SQL_PORT"),

    }
}

Variables are loaded into the docker using the env file .env.app

1
2
3
4
5
6
7
8
SECRET_KEY=<FILL_HERE>
SQL_ENGINE=django.db.backends.postgresql
SQL_DATABASE=mvp
SQL_USER=<FILL_HERE>
SQL_PASSWORD=<FILL_HERE>
SQL_HOST=db
SQL_PORT=5432
DATABASE=postgres

Postgres requires environment variables such as username, password, and database details to initialize the database. So, another file(.env.db) with the following information is out there.

1
2
3
POSTGRES_USER=<FILL_HERE>
POSTGRES_PASSWORD=<FILL_HERE>
POSTGRES_DB=mvp

Dockerfile

Now, let us write the Dockerfile for the business logic(Django + unicorn). We will use a multi-stage builder approach with python:3.11.4-slim-buster as the parent image. In the builder section, dependencies and flakes are installed. The flake is a command-line utility that checks Python code against coding style (PEP 8), programming errors, and complex constructs.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
###########
# BUILDER #
###########

# pull official base image
FROM python:3.11.4-slim-buster as builder

# set work directory
WORKDIR /usr/src/app

# set environment variables
ENV PYTHONDONTWRITEBYTECODE 1
ENV PYTHONUNBUFFERED 1

# install system dependencies
RUN apt-get update && \
    apt-get install -y --no-install-recommends gcc

# lint
RUN pip install --upgrade pip
RUN pip install flake8==6.0.0
COPY . /usr/src/app/
RUN flake8 --ignore=E501,F401 .

# install python dependencies
COPY ./requirements.txt .
RUN pip wheel --no-cache-dir --no-deps --wheel-dir /usr/src/app/wheels -r requirements.txt


#########
# FINAL #
#########

# pull official base image
FROM python:3.11.4-slim-buster

# create directory for the app user
RUN mkdir -p /opt/app

# create the app user
RUN addgroup --system app && adduser --system --group app

# create the appropriate directories
ENV HOME=/opt/app
ENV APP_HOME=/opt/app/web
RUN mkdir $APP_HOME
RUN mkdir $APP_HOME/staticfiles
RUN mkdir $APP_HOME/mediafiles
WORKDIR $APP_HOME

# install dependencies
RUN apt-get update && apt-get install -y --no-install-recommends netcat
COPY --from=builder /usr/src/app/wheels /wheels
COPY --from=builder /usr/src/app/requirements.txt .
RUN pip install --upgrade pip
RUN pip install --no-cache /wheels/*

# copy entrypoint.prod.sh
COPY ./entrypoint.sh .
RUN sed -i 's/\r$//g'  $APP_HOME/entrypoint.sh
RUN chmod +x  $APP_HOME/entrypoint.sh

# copy project
COPY . $APP_HOME

# chown all the files to the app user
RUN chown -R app:app $APP_HOME

# change to the app user
USER app

# run entrypoint.sh
ENTRYPOINT ["/opt/app/web/entrypoint.sh"]

In the FINAL section of the build stage, an app user and its home directories are created. A couple of directories are made to store static and media files. The media files will be served from NGINX, which we will see later. A script named entrypoint.sh will run as the docker entry point. This script checks for the db container before starting the app.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
#!/bin/sh

if [ "$DATABASE" = "postgres" ]
then
    echo "Waiting for postgres..."

    while ! nc -z $SQL_HOST $SQL_PORT; do
      sleep 0.1
    done

    echo "PostgreSQL started"
fi

exec "$@"

NGINX

It is a simple Dockerfile to the standards. To reduce the attack surface, the user is set to nginx instead of root. The parent image is chosen as nginx:1.27.

The nginx user requires permission to access a few directories to function correctly.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
FROM nginx:1.27

RUN rm /etc/nginx/conf.d/default.conf
COPY nginx.conf /etc/nginx/conf.d

RUN mkdir -p /var/cache/nginx/client_temp && \
        mkdir -p /var/cache/nginx/proxy_temp && \
        mkdir -p /var/cache/nginx/fastcgi_temp && \
        mkdir -p /var/cache/nginx/uwsgi_temp && \
        mkdir -p /var/cache/nginx/scgi_temp && \
        chown -R nginx:nginx /var/cache/nginx && \
        chown -R nginx:nginx /etc/nginx/ && \
        chmod -R 755 /etc/nginx/ && \
        chown -R nginx:nginx /var/log/nginx

RUN touch /var/run/nginx.pid && \
        chown -R nginx:nginx /var/run/nginx.pid /run/nginx.pid

USER nginx

CMD ["nginx", "-g", "daemon off;"]

All we do differently is use a custom nginx.conf file as below. The requests are proxied to the app containers. The media files are stored at /opt/app/web/media.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
upstream cloudtalents {
    server app:8000;
}
server {
    listen 80;
    location / {
        proxy_pass http://cloudtalents;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Host $host;
        proxy_redirect off;
    }
    location /media/ {
        alias /opt/app/web/media/;
    }
}

Docker Compose

Now, let us build our docker-compose file. Two volume directories are defined, one for Postgres and the other for media. The media_volume is attached to both NGINX and WEB services.

it builds Docker images for web and nginx services using the above Dockerfiles.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
services:
  nginx:
    build: ./nginx
    container_name: nginx
    volumes:
      - media_volume:/opt/app/web/media
    ports:
     - 80:80
    depends_on:
     - web
  web:
    build:
      context: ./app
      dockerfile: Dockerfile
    container_name: app
    volumes:
      - media_volume:/opt/app/web/media
    command: gunicorn cloudtalents.wsgi:application --bind 0.0.0.0:8000
    expose:
      - 8000
    env_file:
      - ./.env.app
    depends_on:
      - db
  db:
    image: postgres:16
    container_name: db
    volumes:
      - postgres_data:/var/lib/postgresql/data/
    env_file:
      - ./.env.db

volumes:
  postgres_data:
  media_volume:

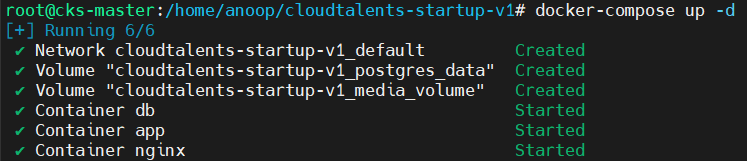

The app container starts following the DB. The env files are being passed to the respective containers.

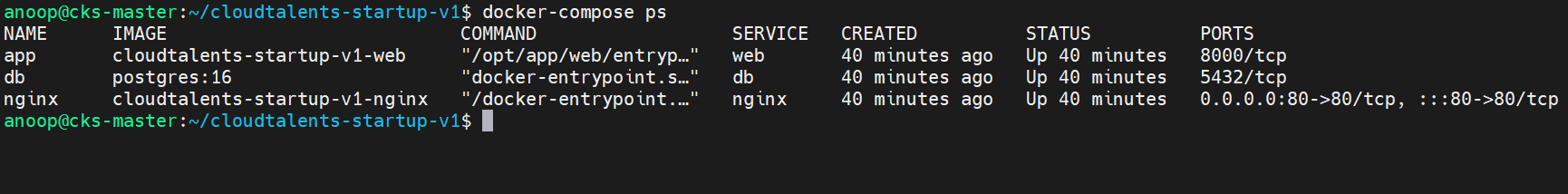

List containers

Note

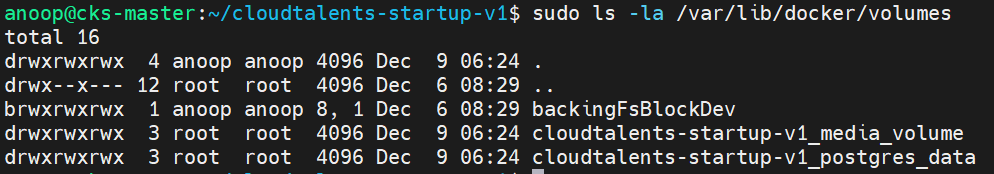

Well, the containers are up and running. Let us examine the docker volumes.

Docker Volumes

Tip

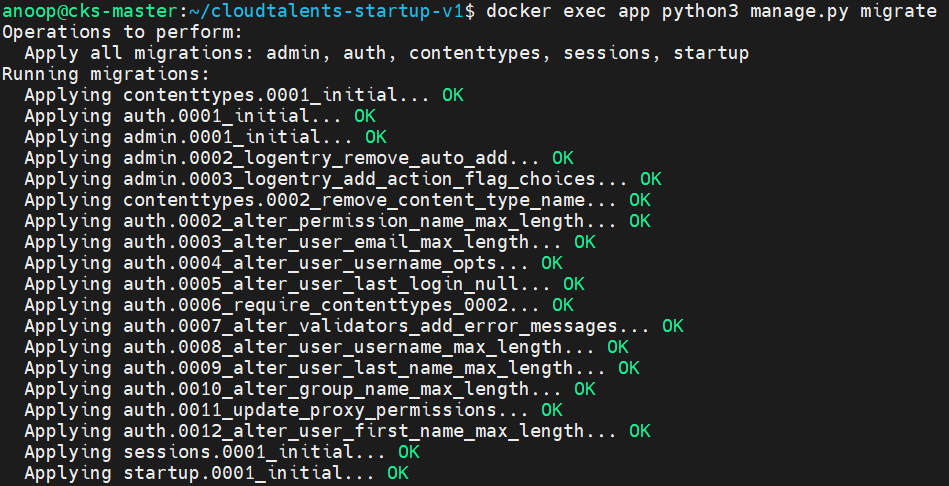

Next, we need to apply the Django changes to create the sessions on the database.

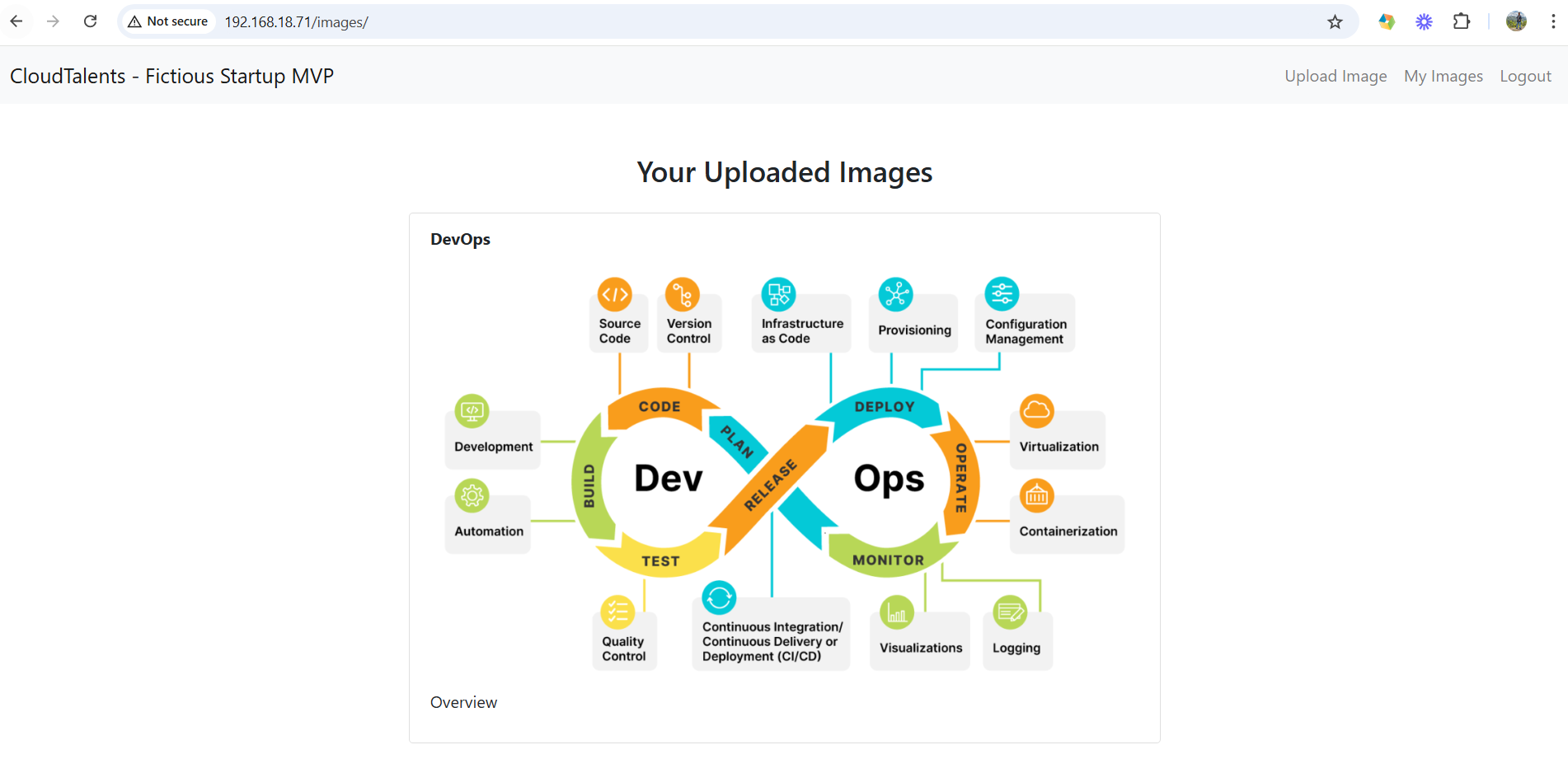

Significant, no errors. Now, let us try to access the application and upload an image.

Browse the application

Observability

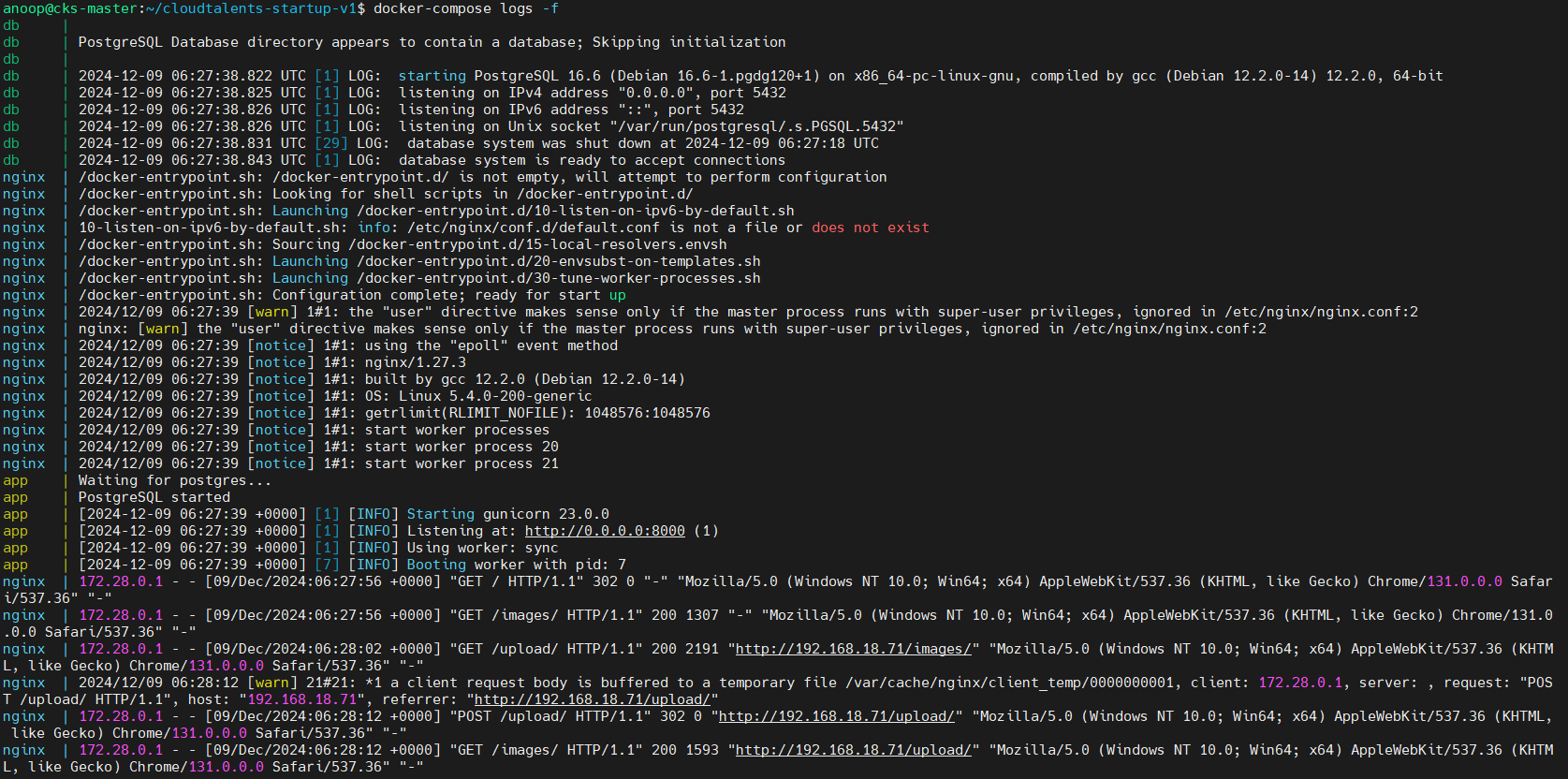

Let’s look at the docker-compose logs to understand the flow. Nginx serves as a reverse proxy, sending requests to the app container upstream. The app retries the user details from the db before constructing the HTML page.

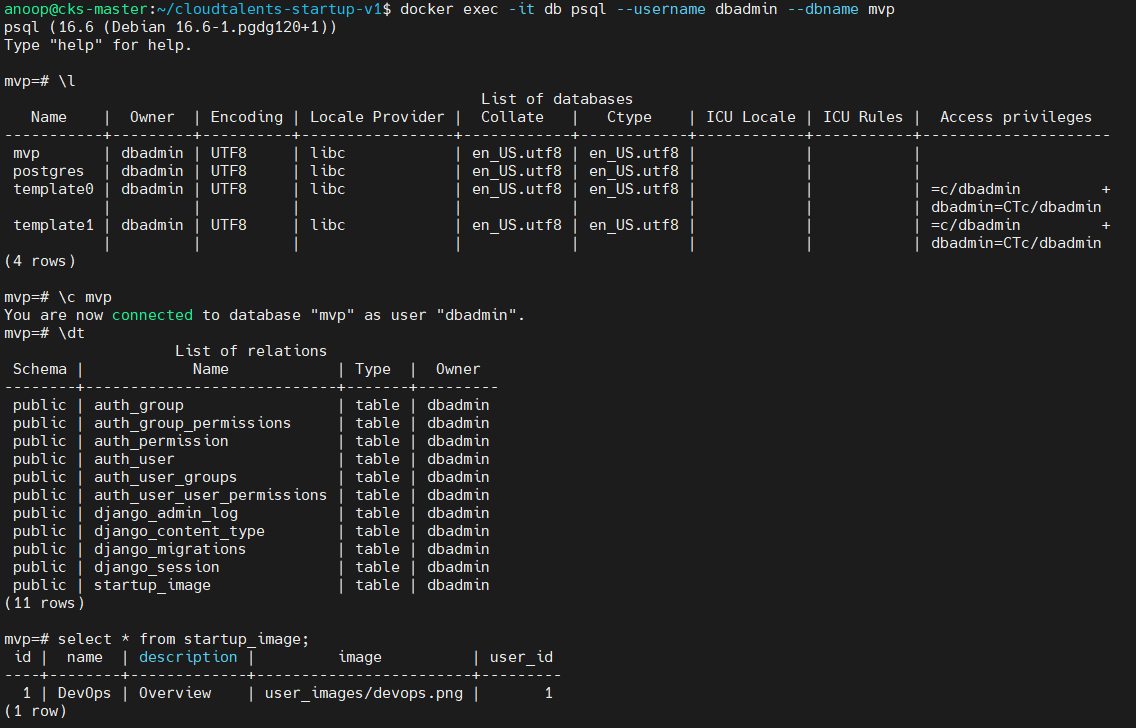

If you’d like to see the database tables, please refer to the following diagram. In the startup_image table, the image name is DevOps, and the description is Overview. The details match the figure above.
